SHOTTRACK MONITORING EQUIPMENT
- State of the Art Blast Monitoring Equipment
- Velocity of Detonation Monitors
- Vibration Monitors
ShotTrack is a company dedicated to the design, development and manufacture of state of the art electronic monitoring equipment for the use in mining and construction industries.
As an authorised distributor of ShotTrack products in Türkiye and the Middle East, EMC provides local sales, support, and expertise, ensuring customers have access to industry-leading monitoring solutions for blast performance and vibration analysis.

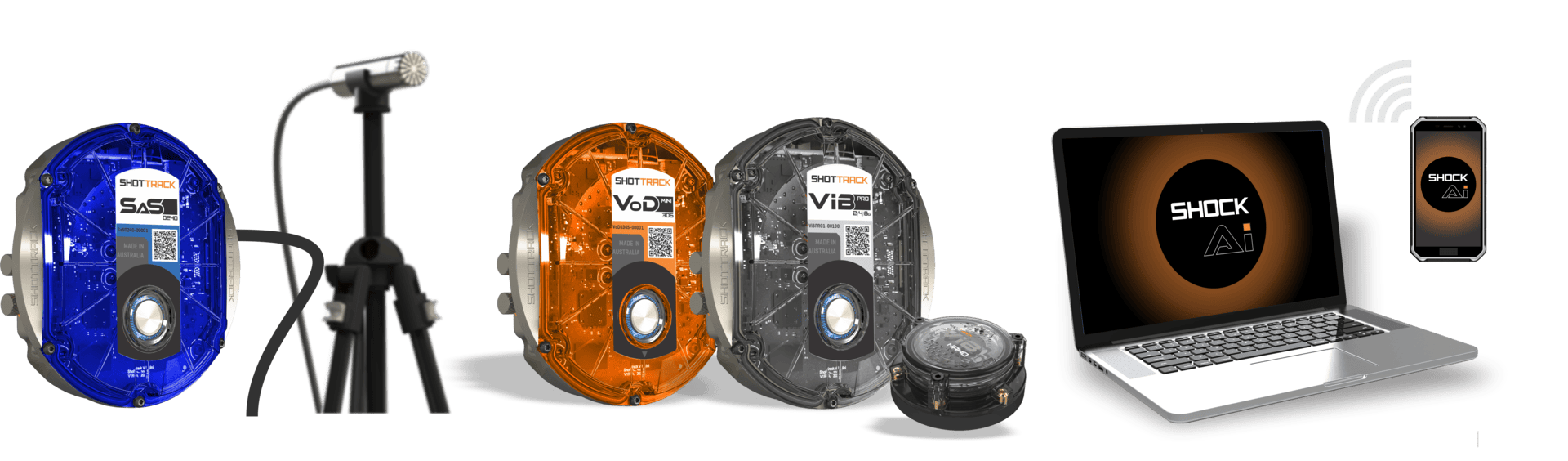

SHOTTRACK PRODUCTS

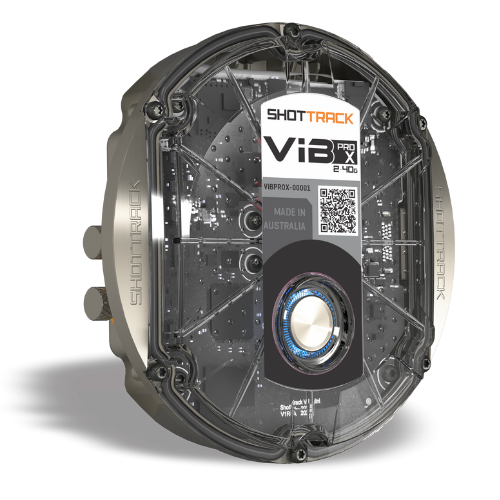

ViB-Pro
The ShotTrack ViB-Pro is a compact and versatile vibration monitoring unit designed to provide cost-effective solutions for a range of applications, including ground vibration monitoring, bridge stability, and construction induced vibration.
Equipped with a high-precision tri-axial accelerometer, that is selectable from 2g to 40g, the device can be controlled by a dedicated mobile application via Bluetooth, providing immediate results and the ability to upload data to the cloud (SHOCK AI) for analysis and report generation.
ViB-Pro can be deployed at any angle, with the M10 thread, Dynabolt (Masonry Bolt), base-plate, or screw-in spikes for soft ground applications.
ACCELEROMETER
V1 Selectable 2, 4, 8 g
V2 Selectable 10, 20, 40 g
Tri-axial
20 Bit resolution
RECORDING MODES
Histogram – Every 5 min
Peak Vector Sum – Up to 104 sec
Waveform – Up to 52 sec
Sample rate – 1000 or 2000 s/s
BATTERY
4.7 Ah Li-ion rechargeable
1.5 hour USB-C fast charge
8 months in histogram mode
7 months in PVS or waveform
OTHER FEATURES
GPS Position and timing
Bluetooth connectivity
Wire-break trigger
Dimension: Diameter – 133 mm, Height – 36 mm, Weight 440 g

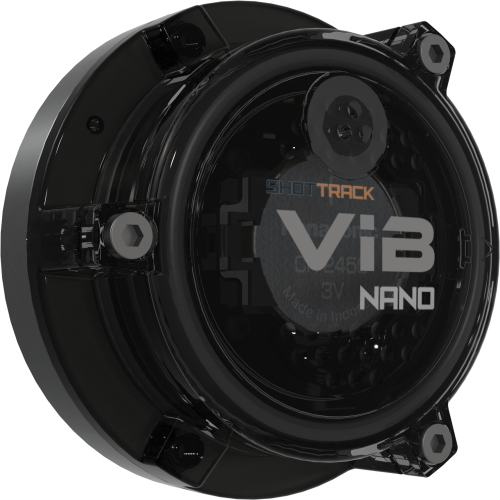

ViB-Nano – 2, 4, & 8g
The ShotTrack ViB-Nano is a tiny vibration monitoring unit designed to provide an economical solution for all vibration analyzing needs and extremally easy to carry around and deploy.
The unit houses a high precision tri-axial accelerometer, controlled by the latest Bluetooth and dedicated mobile phone application, which allows immediate results, file upload to the cloud (SHOCK AI) and report generation.
ViB-Nano can be deployed at any angle, with the M8 thread, Dynabolt (Masonry Bolt), base-plate, or screw-in spikes for soft ground applications.
ACCELEROMETER
V1 Selectable 2, 4, 8g
Tri-axial
20 Bit resolution
RECORDING MODES
Histogram – Every 5 min
Peak Vector Sum – Up to 26 sec
Waveform – Up to 13 sec
Sample rate – 1000 or 2000 s/s
BATTERY
Replaceable coin-cell battery (CR2450)
3 weeks in histogram mode
2 weeks in PVS or waveform
DIMENSIONS
Diameter – 68mm
Height – 28mm
Weight – 162g (with battery)

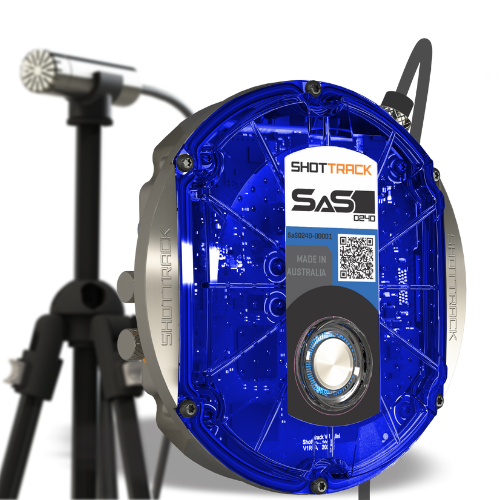

ViB-SaS
The ShotTrack ViB-SaS is a compact and versatile vibration and Air Overpressure monitoring unit designed to provide cost-effective solutions for a range of applications, including ground vibration, bridge stability, and construction induced vibration.
The unit houses a high precision tri-axial accelerometer, controlled by the latest Bluetooth and dedicated mobile phone application, which allows immediate results, file upload to the cloud (SHOCK AI) and report generation.
ViB-SaS can be deployed at any angle, with the M8 thread, Dynabolt (Masonry Bolt), base-plate, or screw-in spikes for soft ground applications.
ACCELEROMETER
Selectable 2, 4, 8, 10, 20, 40g
Tri-axial
20 Bit resolution
RECORDING MODES
Histogram – Every 5 min
Waveform – Up to 52 sec
Sample rate – 1000, 2000 or 4000 s/s
BATTERY
4.7 Ah Li-ion rechargeable
1.5 hour USB-C fast charge
8 months in histogram mode
6 months in PVS or waveform
9 days with GPS continual timing
1 day – all features and microphone
OTHER FEATURES
GPS position and timing
Bluetooth connectivity
Wire-break trigger

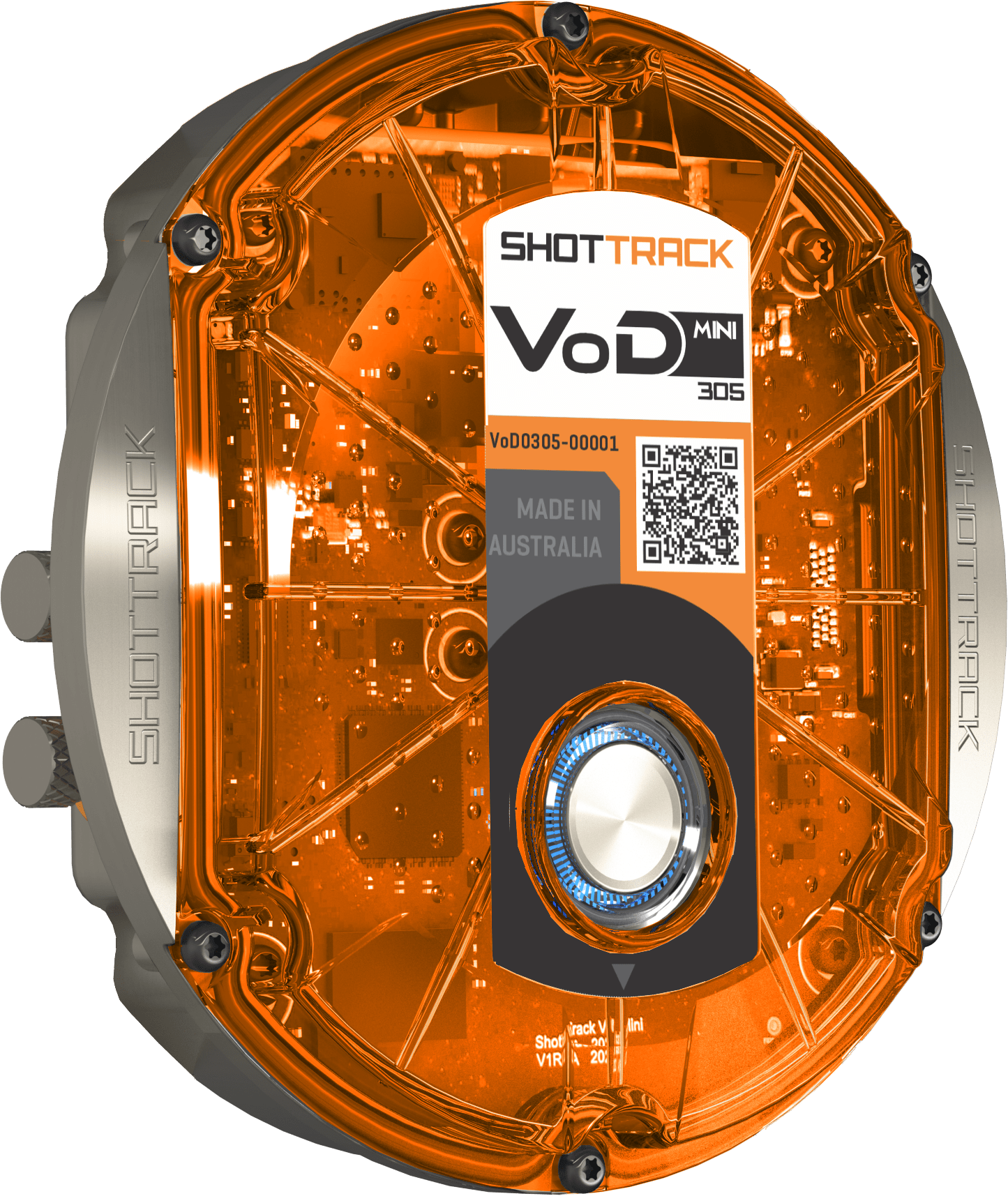

VoD-305-Mini
The ShotTrack VoD-Mini is a compact and versatile Velocity of Detonation monitoring unit designed to provide cost-effective solutions for quality control, explosive performance testing and optimization of controlled blasting.
Equipped with an impressive 256 KHz sample rate and a precise nominal resolution of 90 picoseconds, the VoD-Mini-305 redefines accuracy in the field. It features advanced GPS-synchronized timestamps and integrates flawlessly with ShockAi App, enhancing its operational capabilities.
Very easy to use. The unit uses readily available and affordable standard co-axial cables.
SPECS
Consumable: Standard co-axial cable
Max cable length: 305m
Pulse type: Negative 5 volts
IP68 rated case
RECORDING MODES
1 or 2 seconds
Sample rate – 256 KHz (3.9 µs per sample)
BATTERY
4.7 Ah Li-ion rechargeable
1.5 hour USB-C fast charge
10–12 hours of continual use
OTHER FEATURES
GPS position and timing
Bluetooth connectivity
